Capacitor for Air Conditioner
Price: |
0.07~5.0 USD |
Payment Terms: |
T/T |
Place of Origin: |
Zhejiang, China (Mainland) |
Product Detail
Model No.:
CBB65
Production Capacity:
300,000PCS PER MONTH
Delivery Date:
10 TO 25 DAYS AFTER RECEIPT...
Capacitance:
1UF-120UF
Operating Temperature:
25/85/21
Means of Transport:
by sea
Packing:
BY CARTON OR BY PALLET
Brand Name:
LMG
Rated Voltage:
220VAC-500VAC

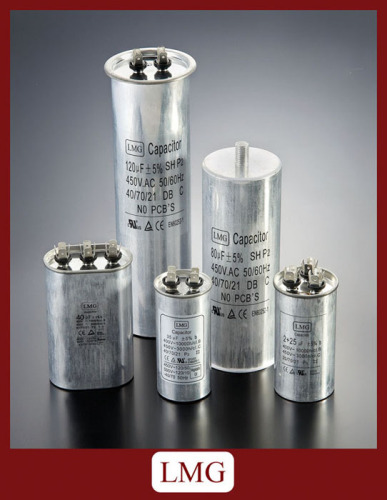

LMG brand Air Conditioner Capacitor oil type is of reliable performance and good appearance.
It is made of aluminium case sealed by castor oil and characteristic of greater endurance and better heat elimination. It's widely applied in Air conditioner, Refrigerator, lamp and so on.
Technique Data of Motor Running Capacitor: |
Climate Type: | 40/70/21; 25/85/21 |
Rated Voltage: | 250-660VAC |
Rated Capacitance: | 250VAC: 1-120 uF |
450VAC: 1-100 uF |
Tolerance: | ±5% |
Testing Voltage: | T-T:2.0·Un, 2S no breakdown |
T-C:2500VAC, 10S no breakdown |
Insulation Resistance: | T-T:≥3000MΩ·uF |
T-C:≥1000MΩ |
Loss Tangent: | tgδ≤0.001 (100Hz) |
Safety Class | P0,P2 |
ROUND AND SQUARE TYPE ARE AVAILABLE. |
LOOKING FORWARD TO YOUR INQUIRY. |
